Egg Breeder Cage

Short Description:

HEFU manual breeder cage is committed to the scientific and efficient breeding of chickens and the all-round professional design ensures the growing environment of egg-breeding chickens, so as to reach the high quality of laying rate. This artificial insemination breeder cage achieves the convenient process of semen collection and fertilization which meets the need of hygiene of the shed.


Product Detail

Product Tags

Technical Description

The cage frame adopts the average hot galvanized sheet, no less than 275g/m2,stable structure, long service life;

The mesh adopts 10% aluminum plated zinc wire mesh, corrosion resistance is 3-4 times of common hot dip galvanized wire mesh;

Hot dip galvanized trough, high strength with flamed structure can achieve seamless slot insertion, reduce feed waste;

The inner edge of the feed trough is low to ensure that the birds take foods;

PVC baffle with patent design has good toughness and rust prevention;

Push-type cage door, easy to operate, conducive to remove birds;

Vertical cage door for male birds to better protection of comb;

Tier height up to 680,large space for birds, good ventilation; Each tier is equipped with a top mesh to prevent birds from pecking the manure belt and avoid disease infection;

Patented drinking tap;

Different heights of water drinking design to make the cocks and hens easy to drink;

Excreta disposal equipment cleans the cage completely;

Patented seperation mesh cage design to increase the airflow;

Multiple environmental control design and automatic switchover to emergency system is to protect your property;

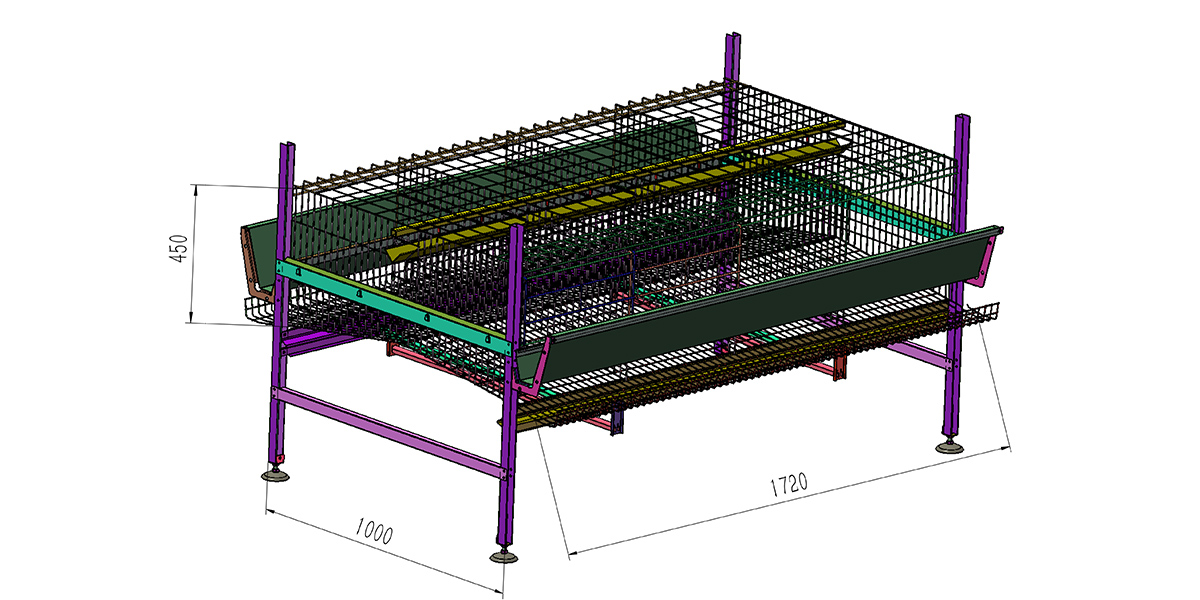

Model 1 3D Diagram Of Egg Breeder Raising Equipment

4
No. of tier average area/bird(cm2) birds/cage tier distance(mm) cage length(mm) cage width(mm) cage height(mm)
3 537.5 32 680 1720 1000 450
4 537.5 32 680 1720 1000 450
5 537.5 32 680 1720 1000 450

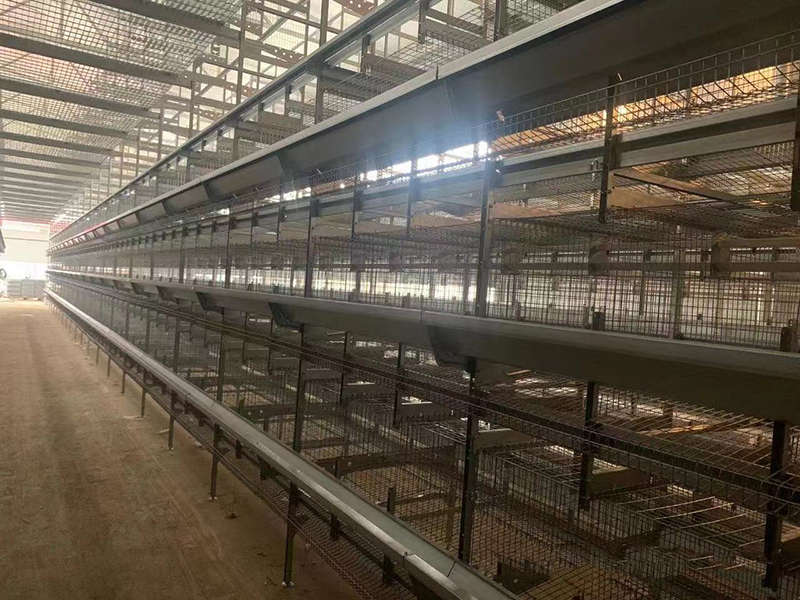

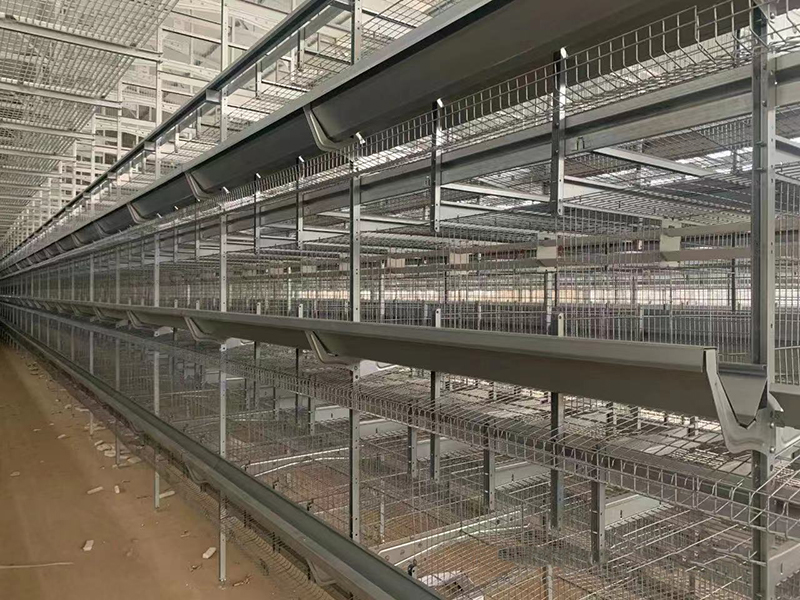

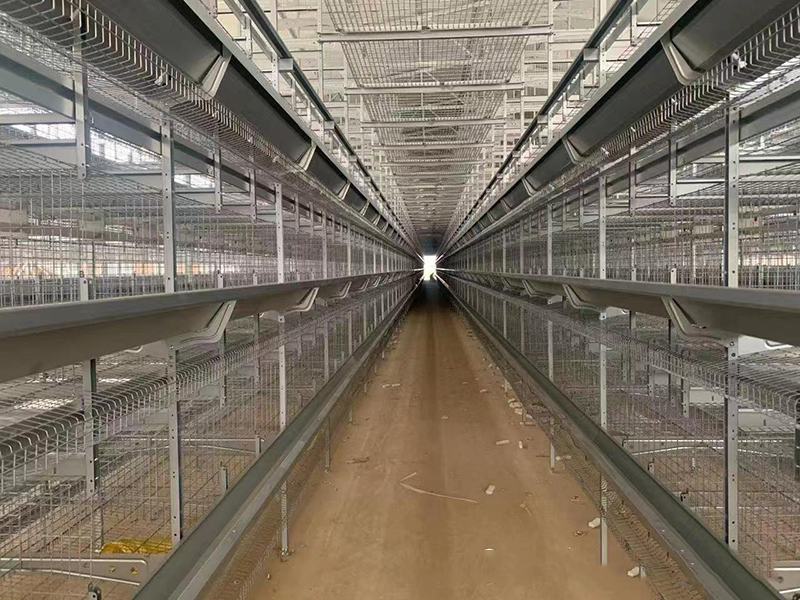

Model 2 Project Pictures Of Egg Breeder Raising Equipment

11
12
13
No. of tier average area/bird(cm2) birds/cage tier distance(mm) cage length(mm) cage width(mm) cage height(mm)
3 500 4 680 1200 1000 510
4 500 4 680 1200 1000 510
5 500 4 680 1200 1000 510

Products Display

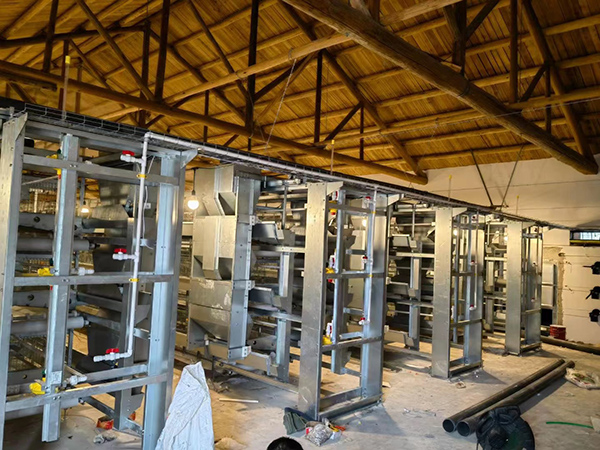

93626f340c819f7d798d93dc6cd637d

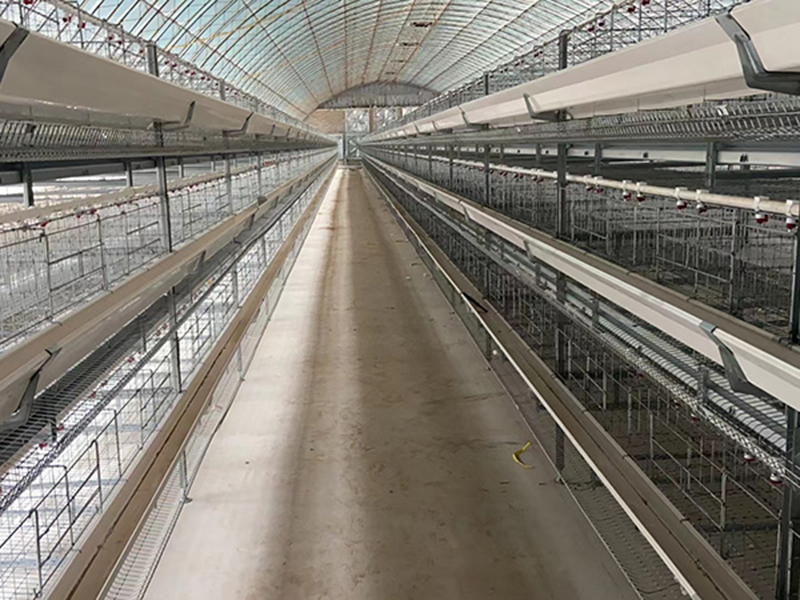

134b399ad896d37ebd80f886d31d5e0

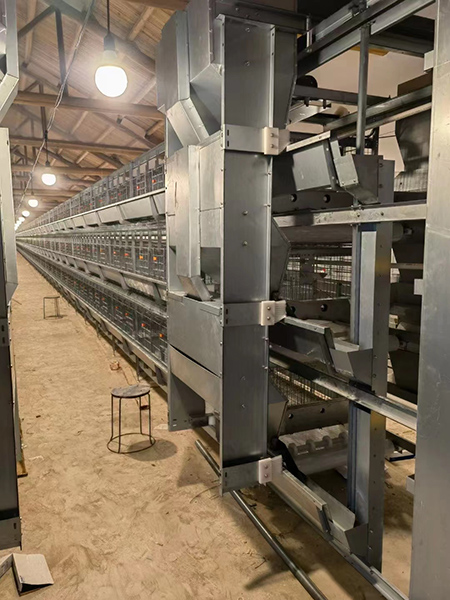

4d9dc5aac45fe32b14810255291fc3f

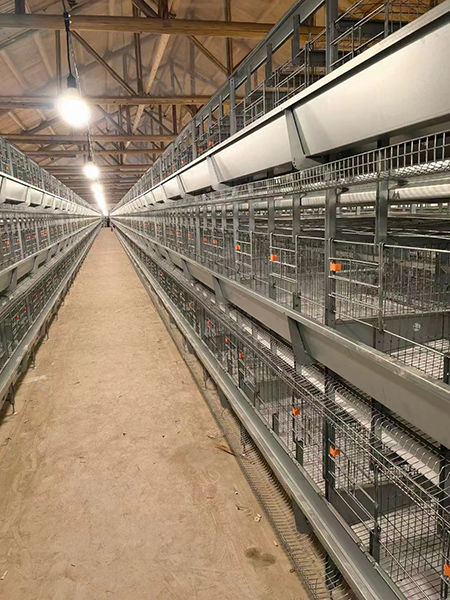

f82d790ae9819306d93028eb220e423

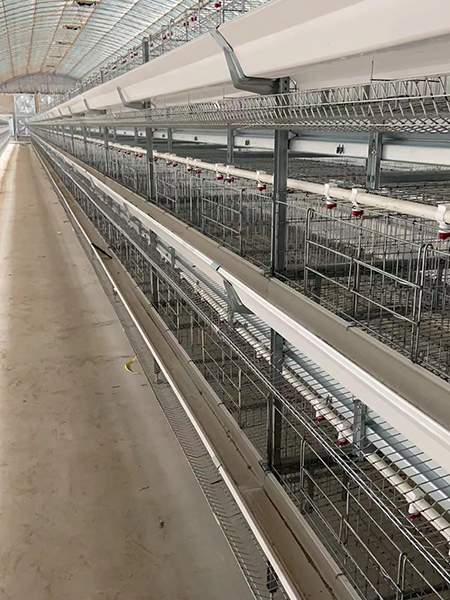

c0337eb8f1d8492fdd356cd42850020
